Product description

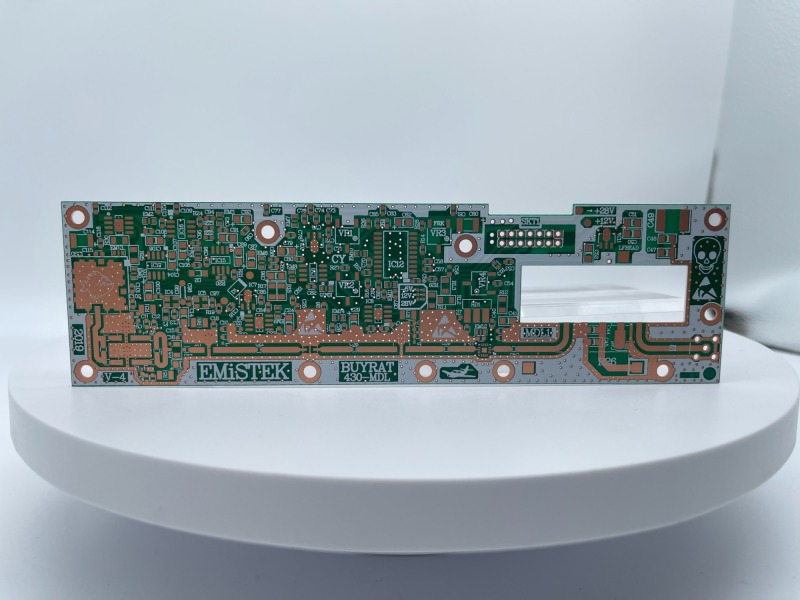

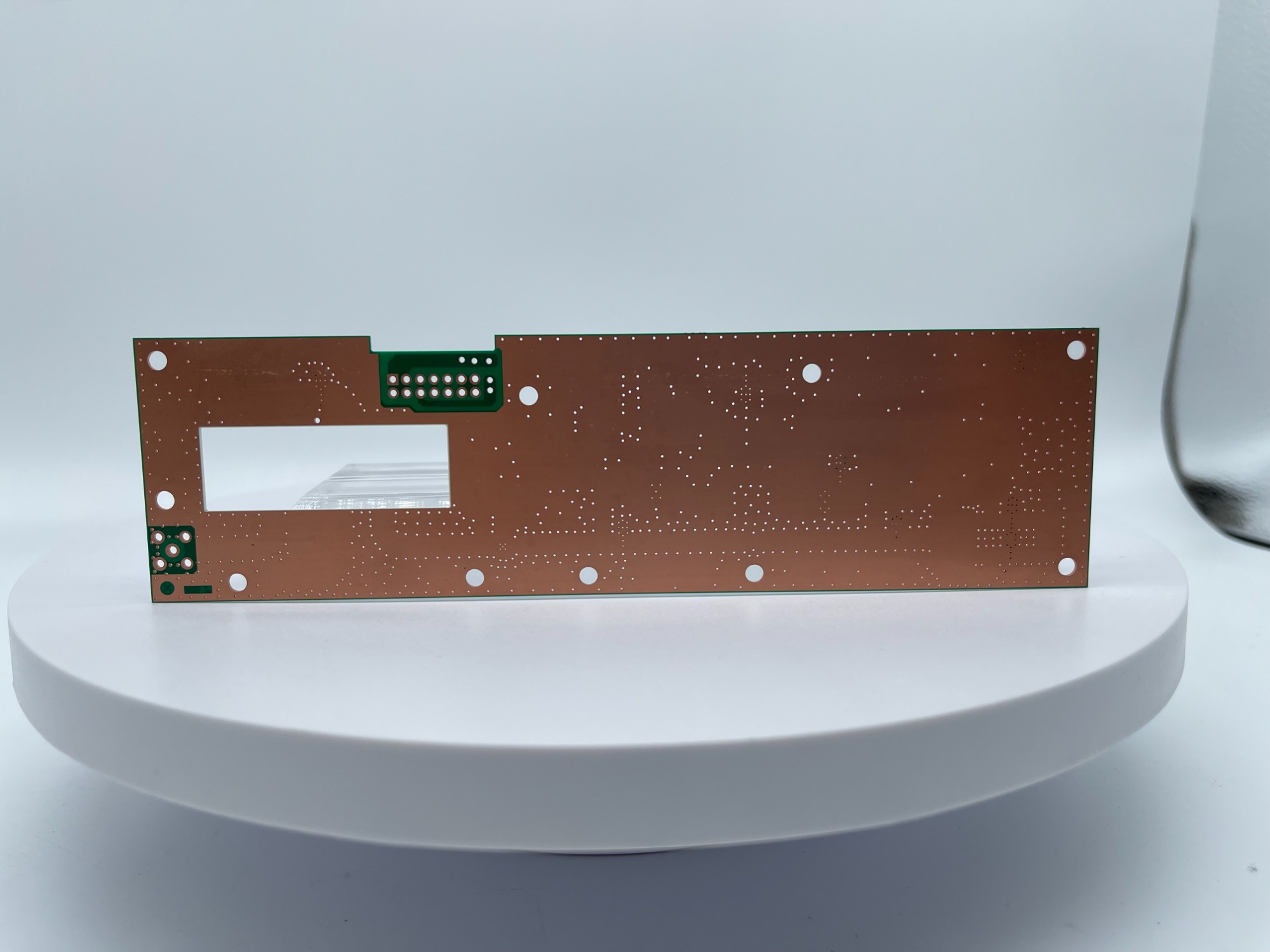

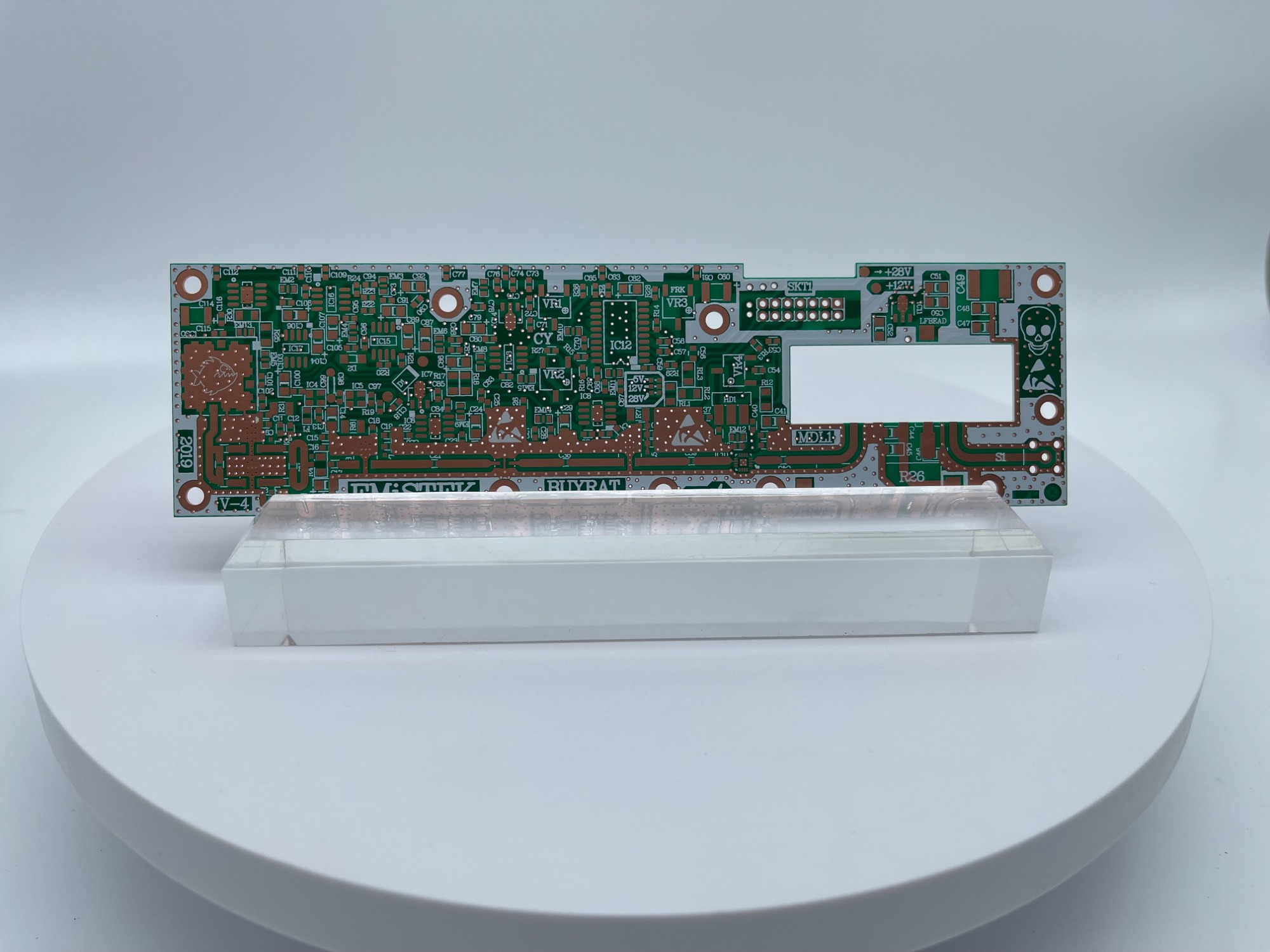

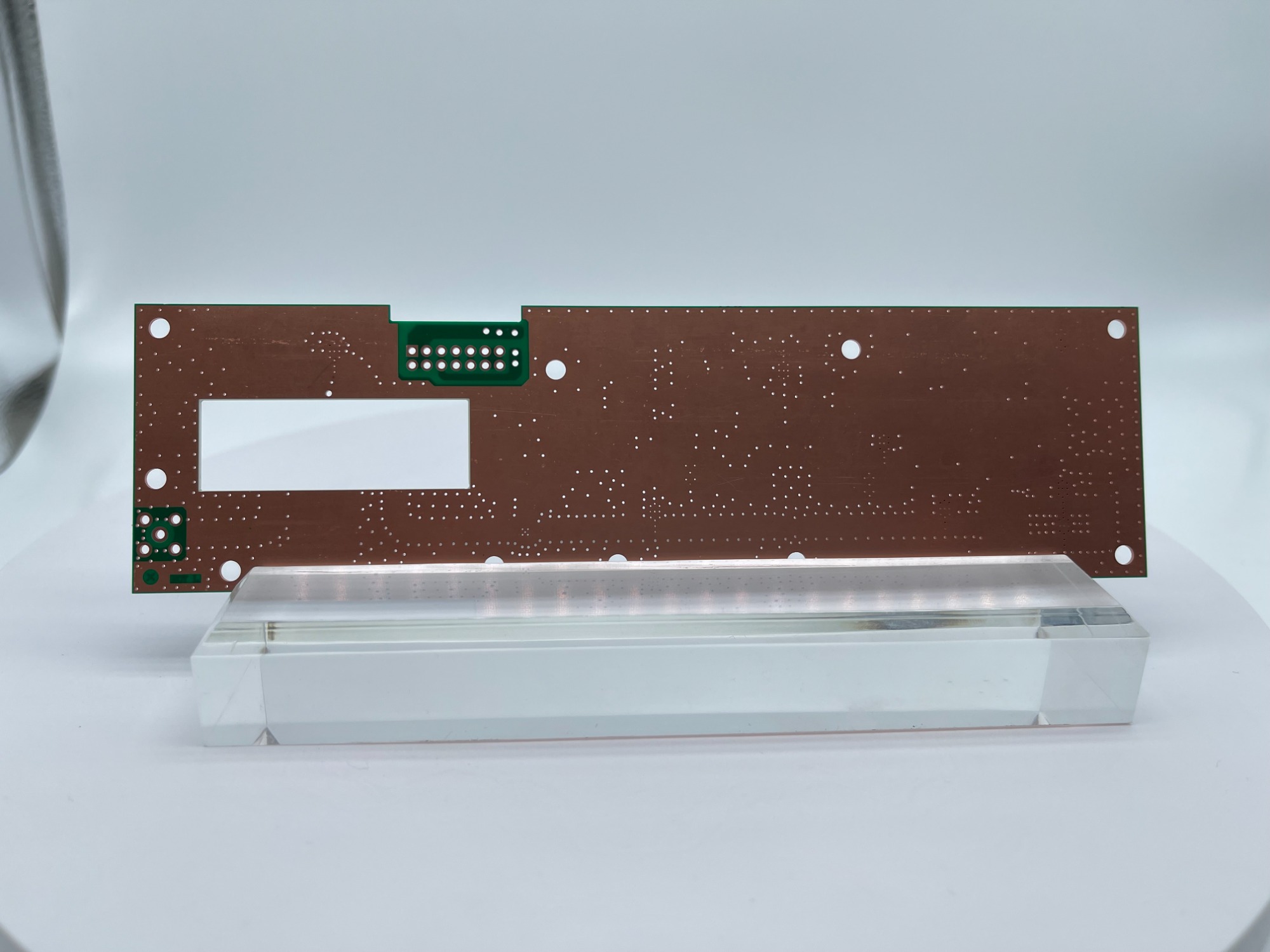

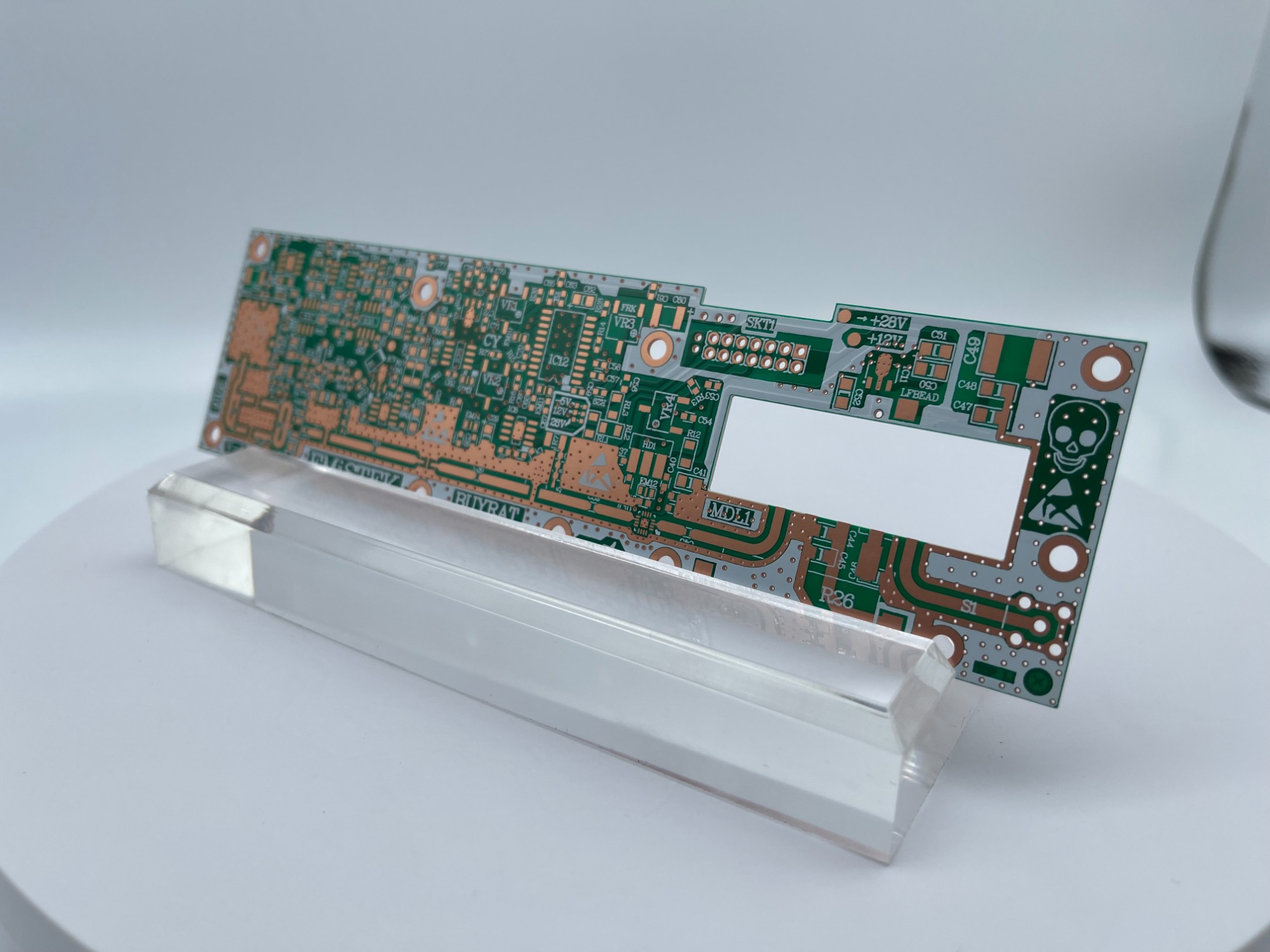

Dickson Circuit specialized in manufacturing rogers circuit board. roger pcb is a type of high-frequency board that raw material is produced by company brand Rogers. rogers pcb board is more difficult to produce than common FR4 material pcb.
Rogers 4350b is a popular rogers pcb material. Ro4350b are proprietary woven glass reinforced hydrocarbon/ceramics with electrical performance close to PTFE/woven glass and the manufacturability of epoxy/ glass.
rogers ro4350b has tight control of dielectric constant (Dk 3.48 +/- 0.05).
rogers circuit board material Ro4350b maintain low loss while utilizing the same processing method as standard epoxy/glass. Available at a fraction of the cost of conventional microwave laminates, pcb rogers 4350 laminates do not require the special through-hole treatments or handling procedures as PTFE based materials. These materials are UL 94 V-0 rated for active devices and high power RF designs.
We produced Rogers
Standard Panel Sizes of
24” X 18” (610 X 457 mm)
24” X 21” (610 X 533 mm)
24” X 36” (610 X 915 mm)
48” X 36” (1219 X 915 mm)
Standard Claddings of
Electrodeposited Copper Foil
½ oz. (18μm) HH/HH
1 oz. (35μm) H1/H1
FEATURES AND BENEFITS of Rogers ro4350b:
Rogers 4350b materials are reinforced hydrocarbon/ceramic laminates - not PTFE
• Designed for performance sensitive, high volume applications Low dielectric tolerance and low loss
• Excellent electrical performance
• Allows applications with higher operating frequencies
• Ideal for broadband applications Stable electrical properties vs. frequency
• Controlled impedance transmission lines
• Repeatable design of filters Low thermal coefficient of dielectric constant
• Excellent dimensional stability Low Z-axis expansion
• Reliable plated through holes Low in-plane expansion coefficient
• Remains stable over an entire range of circuit processing temperatures Volume manufacturing process
• Rogers 4350b laminates can be fabricated using standard glass epoxy processes • Competitively priced CAF resistant.
TYPICAL APPLICATIONS of Rogers ro4350b :
• Cellular Base Station Antennas and Power Amplifiers
• RF Identification Tags
• Automotive Radar and Sensors
• LNB’s for Direct Broadcast Satellites
• Backhaul Radios
• Communications Systems
• IP Infrastructure
• Power Amplifiers
• Small Cells / DAS
• Test & Measurement
• Computing
Besides Rogers board,we can do other brand materials high-frequency board, like Isola fr408hr board.Panasonic,NECLO, ITEQ, SYST, TUC, EMC, ARLON, HITACHI, TACONIC.
Besides high-frequency board,we can do other high difficulty PCB,for example,width/space within 3mil.pad within 0.2mm, ultra- thin PCB, 2m ultra-long PCB.
